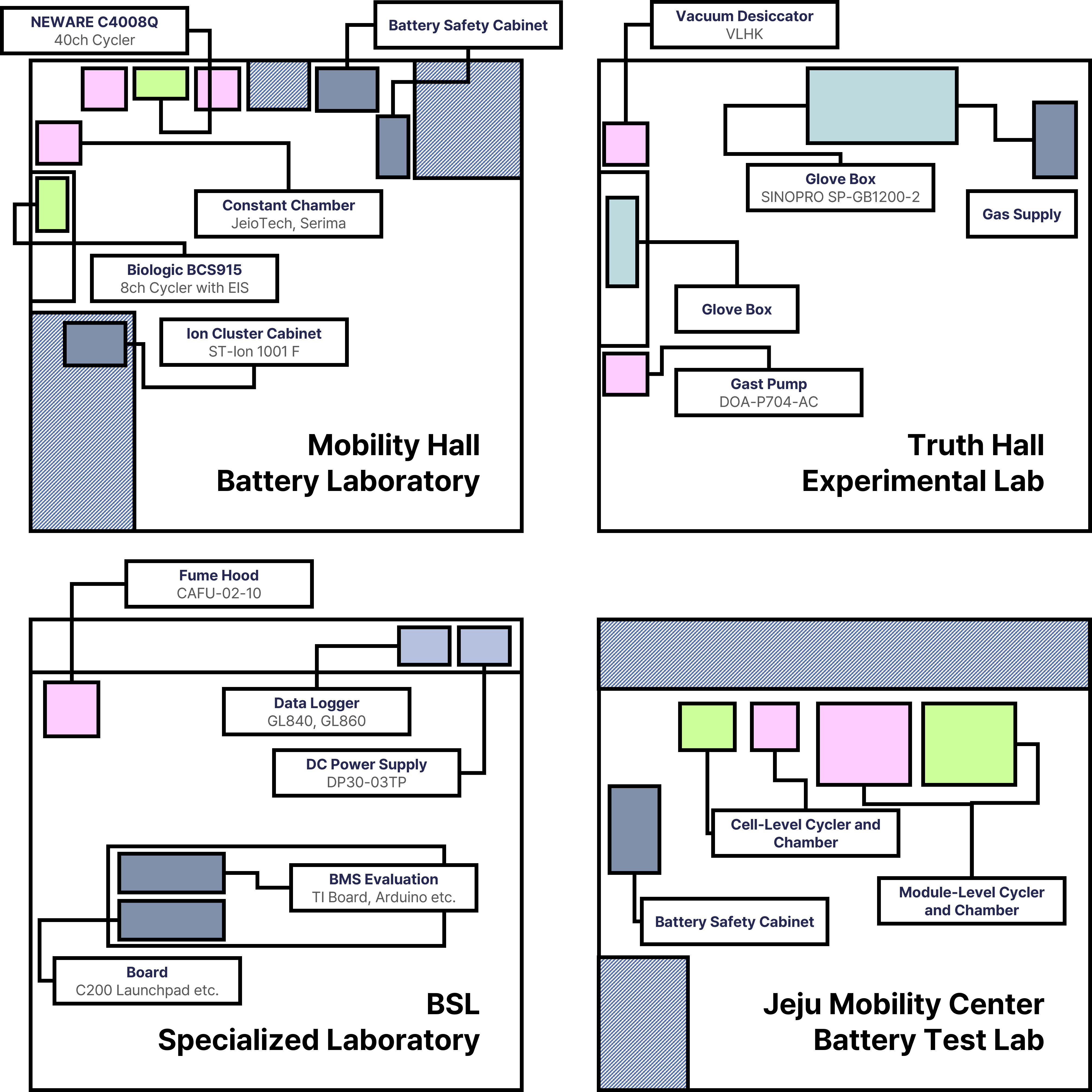

Equipment Overview
| Category | Equipment | Model |
|---|---|---|
| Experiment & Analysis | Data Logger | GL840, GL860 |
| Potentiostat(Battery Cycler) | BCS-915, BTS-4008Q | |
| Constant Temperature Chamber | S-CTC150R1 | |
| DC Power Supply | DP30-03TP | |
| Battery Jig | Model for cylindrical cell | |
| Safety Control | Glove Box | RAF-750 |
| Ion Cluster Cabinet | ST-ION 1001F | |
| Fume Hood | CAFU-02-10 | |
| Vacuum Desiccator | VLHK | |
| Gast Pump | DOA-P704-AC | |
| Software & Hardware Testing | Computing Server | ASUS RS720-E11-RS12U / Precision 7960 Tower |
| MCU Development Board | C2000 Launchpad | |
| EVM (Evaluation Module) | TI BQ76952EVM | |
| EVM (Evaluation Module) | TI LM5170EVM-BIDIR | |

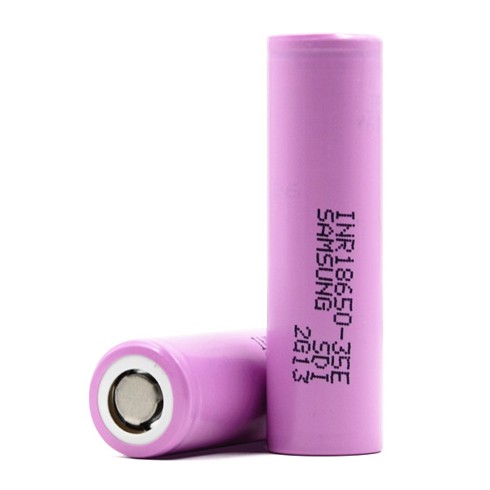

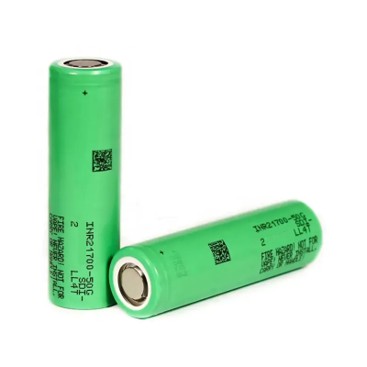

| Battery | Cylindrical Cell — SAMSUNG SDI | INR2170050G, INR2170048X, INR2170050E, INR1865035E, INR1865030Q |
| Cylindrical Cell — LG EnergySolution | INR18650MJ1 | |

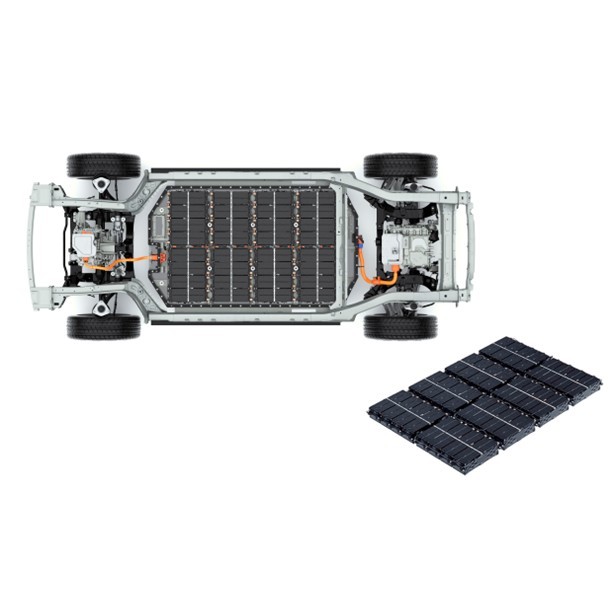

| Pouch Cell — SK on | E-GMP (IONIQ5), Small Pouch Cell | |

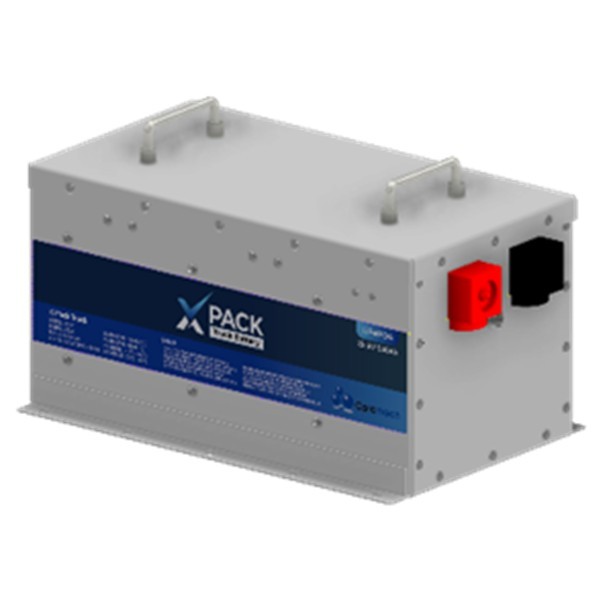

| Prismatic Cell — EVE Energy | EVE LF230 (X-PACK) |
Detailed Specification
Data Logger

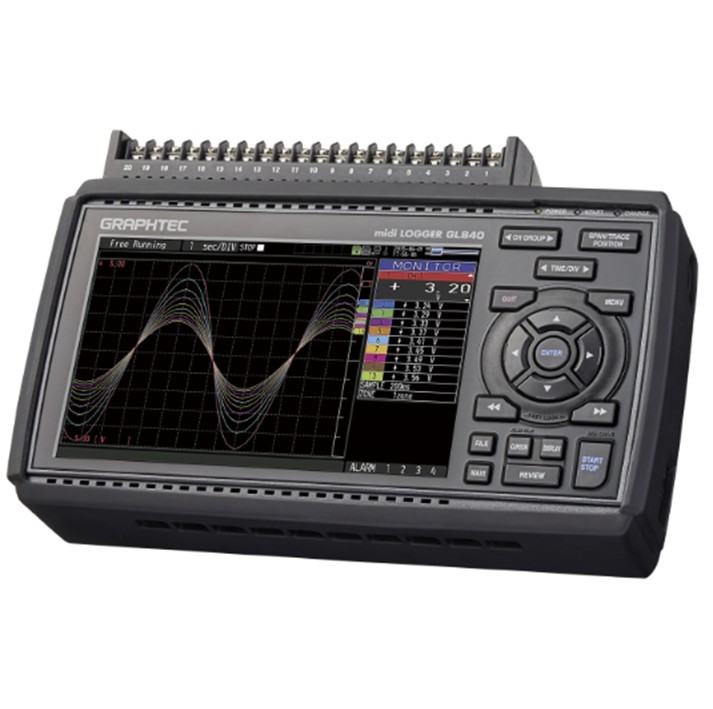

GL840
- Functions: Trigger / Alarm / Pulse input / Calculation / Search / Backup / Check-sum / Scaling
- Power Supply: AC 100–240 V / DC 8.5–24 V / Dual 7.2 V 2900 mAh Battery Packs
- Measurement Range: Voltage (20 mV–100 V), Thermocouple & RTD (100–2000 °C), Humidity (0–100 % RH)

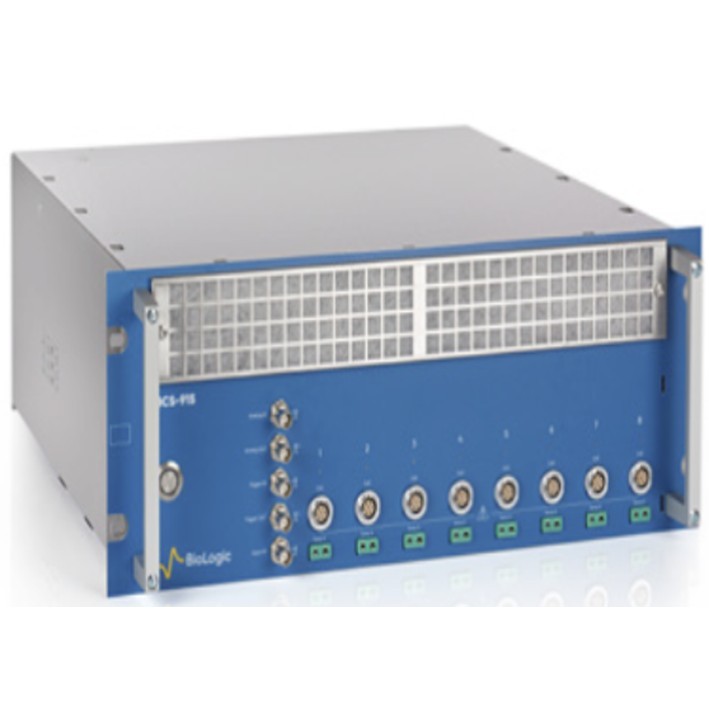

Battery Cycler(Biologic)
BCS-915 (8-channel)
- Voltage: 0–9 V, Resolution 150 μV / Measurement 40 μV (18 bit)
- Accuracy: ±0.01% of value ±0.3 mV, Slew rate 3 kV/s
- Current: ±15 A per channel (5 ranges: 10 A – 1 mA)
- Resolution: Control 80 nA / Measurement 20 nA (18 bit)
- Accuracy: 0.05% of value ±0.015% FSR | Parallel up to ±120 A
- EIS: 8 channels, 10 kHz – 10 mHz | Acquisition time: 1 ms
Battery Cycler(NEWARE)

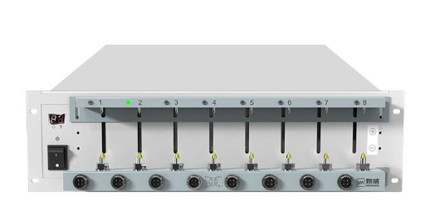

BTS-4008Q
- Voltage: 25 mV – 5 V (Discharge min 2 V), Accuracy ±0.02% FS
- Current: 4 ranges (300 mA / 3 A / 6 A / 15 A), Accuracy ±0.02% FS
- Power: 75 W per channel | AC 220 V input, 860 W
- Resolution: AD 24 bit / DA 24 bit | 4-wire sensing
- Modes: CC / CV / CP charge & discharge, Pulse, DCIR
- System: 8 ch/cabinet, Cycles 1–65535 | Ethernet TCP/IP

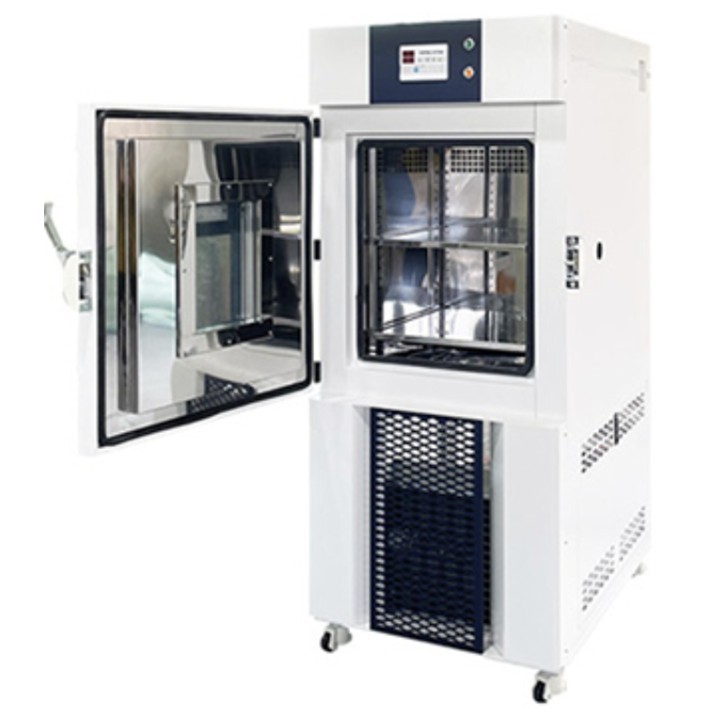

Constant Temperature Chamber
S-CTC150R1
- Max Temp Range: −25 ℃ – 150 ℃
- Operating Range: −20 ℃ – 120 ℃

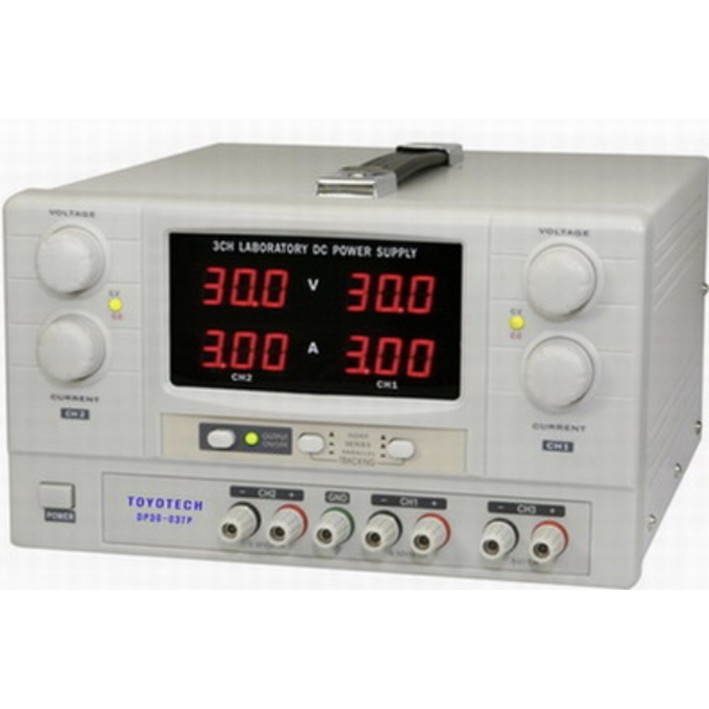

DC Power Supply
DP30-03TP (3-Channel)
- Voltage: 0–30 V (Resolution: 100 mV)
- Current: 0–3 A (1ch & 2ch, Resolution: 10 mA)
- Power: Max Output 180 W | Input: 115/230 V ±10%, 50/60 Hz
- Line Fluctuation: ±0.02% + 2 mV / 2 mA (for ±10% source voltage change)
- Load Fluctuation: ±0.02% + 5 mV / 5 mA (for 0–100% load variation)

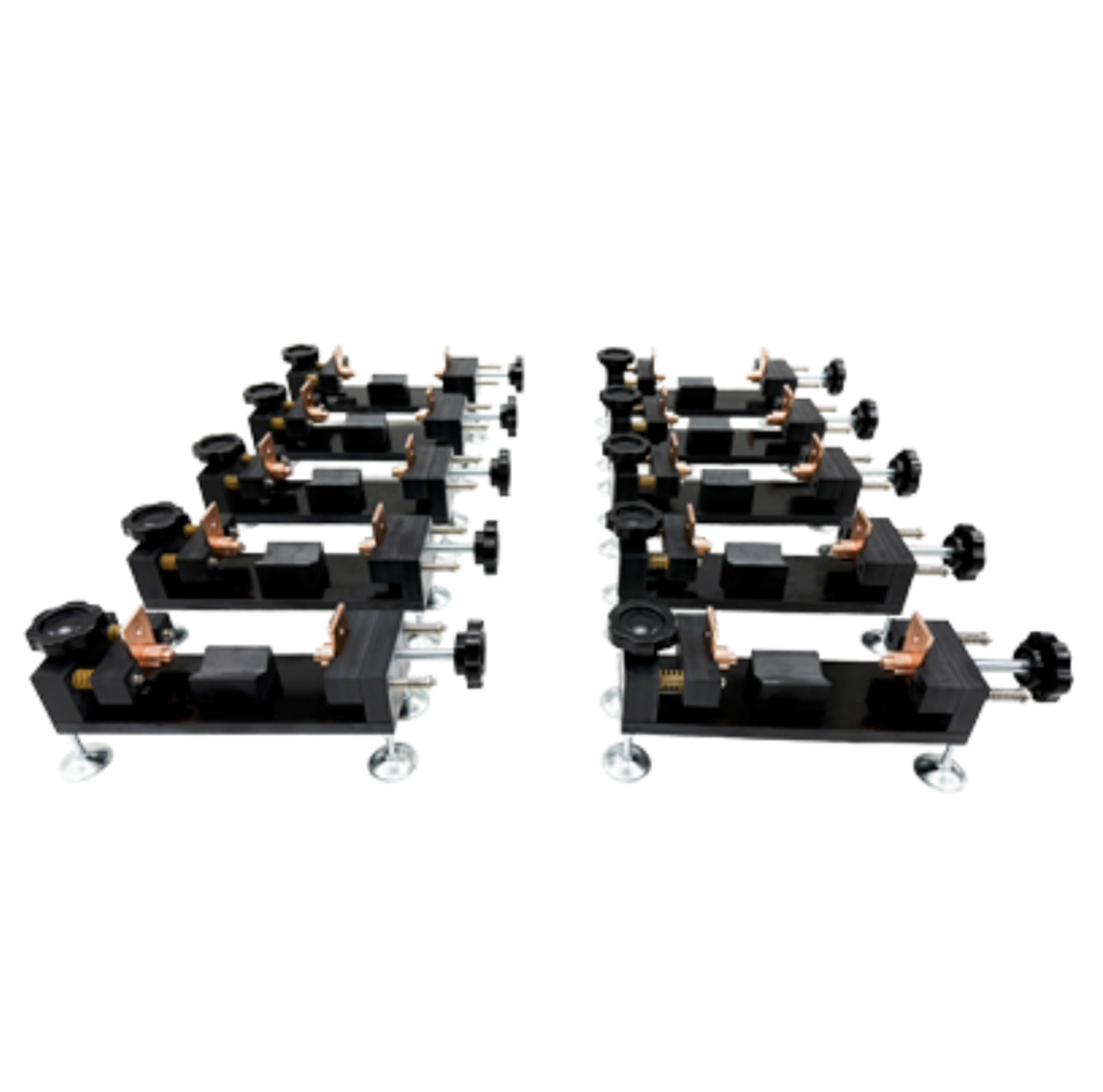

Battery Jig
For Cylindrical Cell
- Temperature Range: −40 ℃ to 100 ℃
- Max Current: ≥ 30 A per channel
- Material: Bakelite (black) | Config: 1 channel / 1 set
- Cell Compatibility: 18650, 21700, 4680 cells

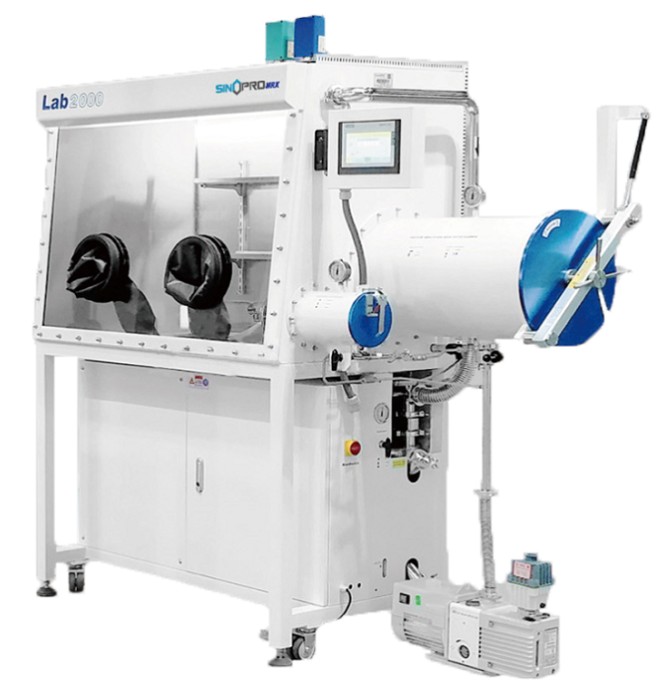

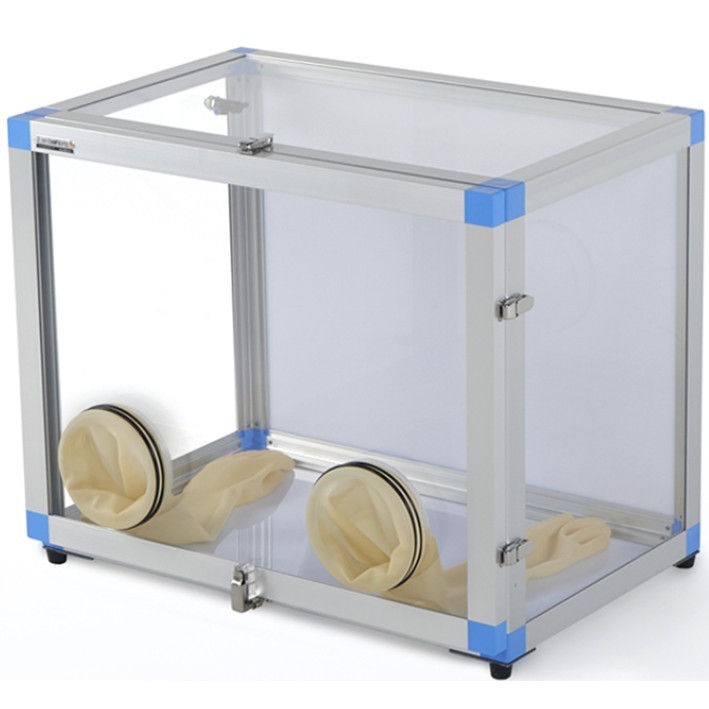

Glove Box
SP-GB1200-2
- Chamber Dimensions: 1200mm (L) × 770mm (W) × 900mm (H)
- Material: 3mm thick SUS304 stainless steel (Front Window: 8mm thick tempered safety glass)
- Gloves: NORTH butyl rubber gloves (USA), 8-inch port diameter, 0.4mm thickness
- Ports: Multiple KF40 ports for gas, liquid, and signal access

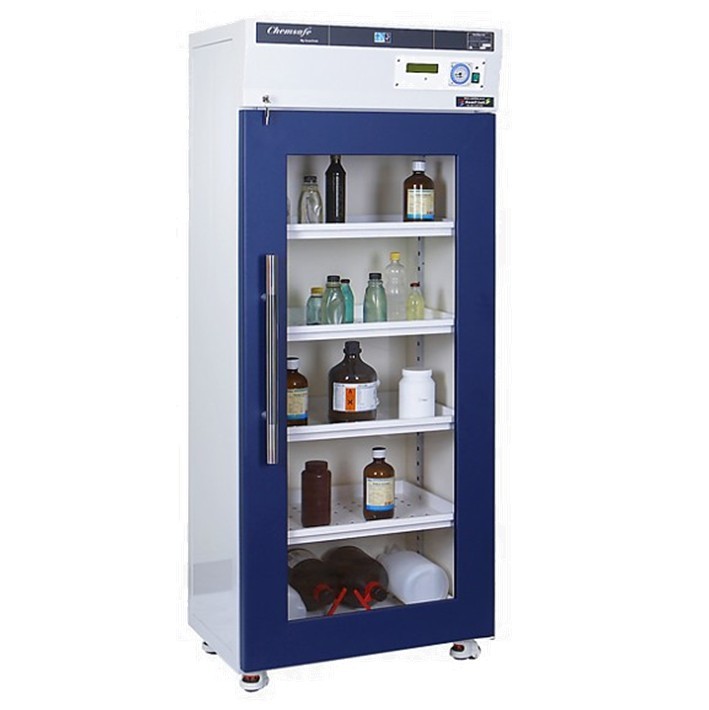

Ion Cluster Cabinet
ST-Ion 1001 F
- External Dimensions: W800 × D550 × H1980 mm
- Structure: Steel plate with epoxy powder coating / Stainless handle
- Door: Polycarbonate window (5T), airtight sealing
- Fan System: AC sirocco fan — low noise & vibration minimized
- Ion Cluster: High-voltage generator for oxidizing/removing harmful gases
- Filter: Carbon composite filter for chemical adsorption and deodorization
Fume Hood

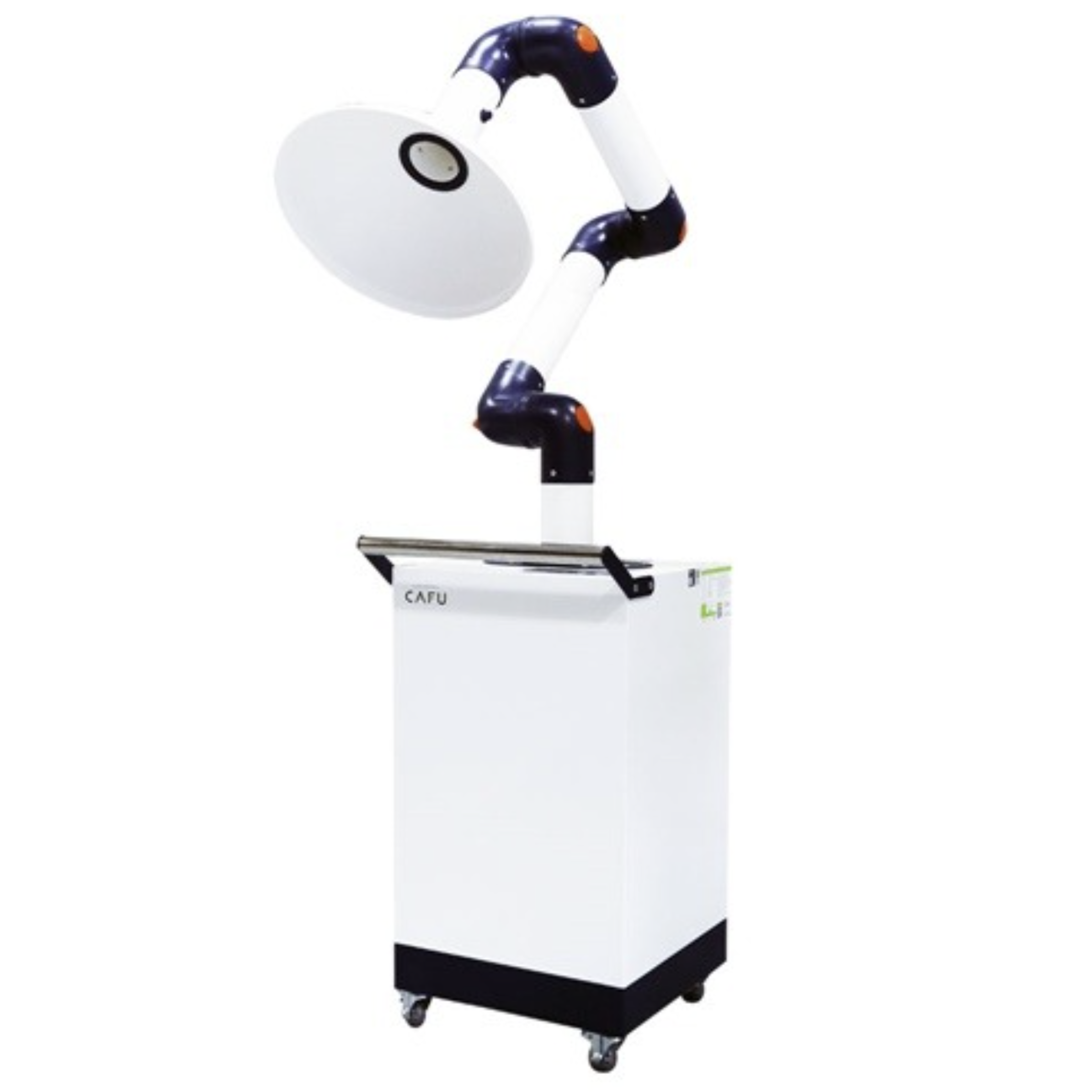

CAFU-02-10
- Type: Arm hood type
- Dimensions: 390 × 390 × 710 mm (Ø 80 × 1300)
- Air Speed & Volume: 9–13 m/s, 600 CMH
- Noise Level: ≤ 55 dB | Power: 220 V, 120 W | Weight: 36 kg

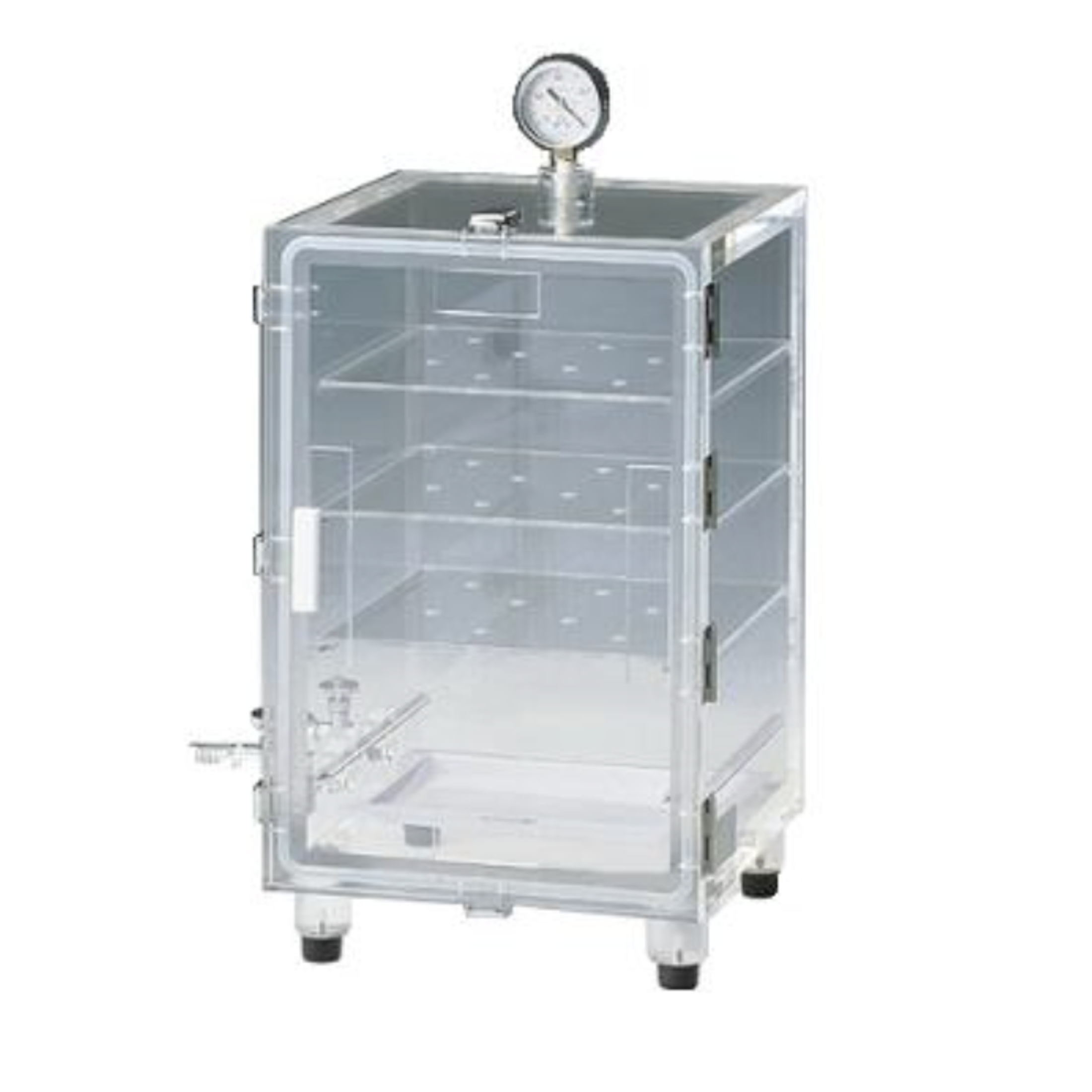

Vacuum Desiccator
VLHK
- Outer Dimensions: 310 × 332 × 530 mm | Capacity: 30 L | Weight: 23 kg
- Inner Dimensions: 260 × 280 × 410 mm
- Allowable Vacuum: 1 Torr (≈133 Pa)
- Material: Transparent reinforced acrylic, 20t
- Accessories: 1 vacuum gauge, 3 shelves, 2 vacuum valves (Ø 8 mm)

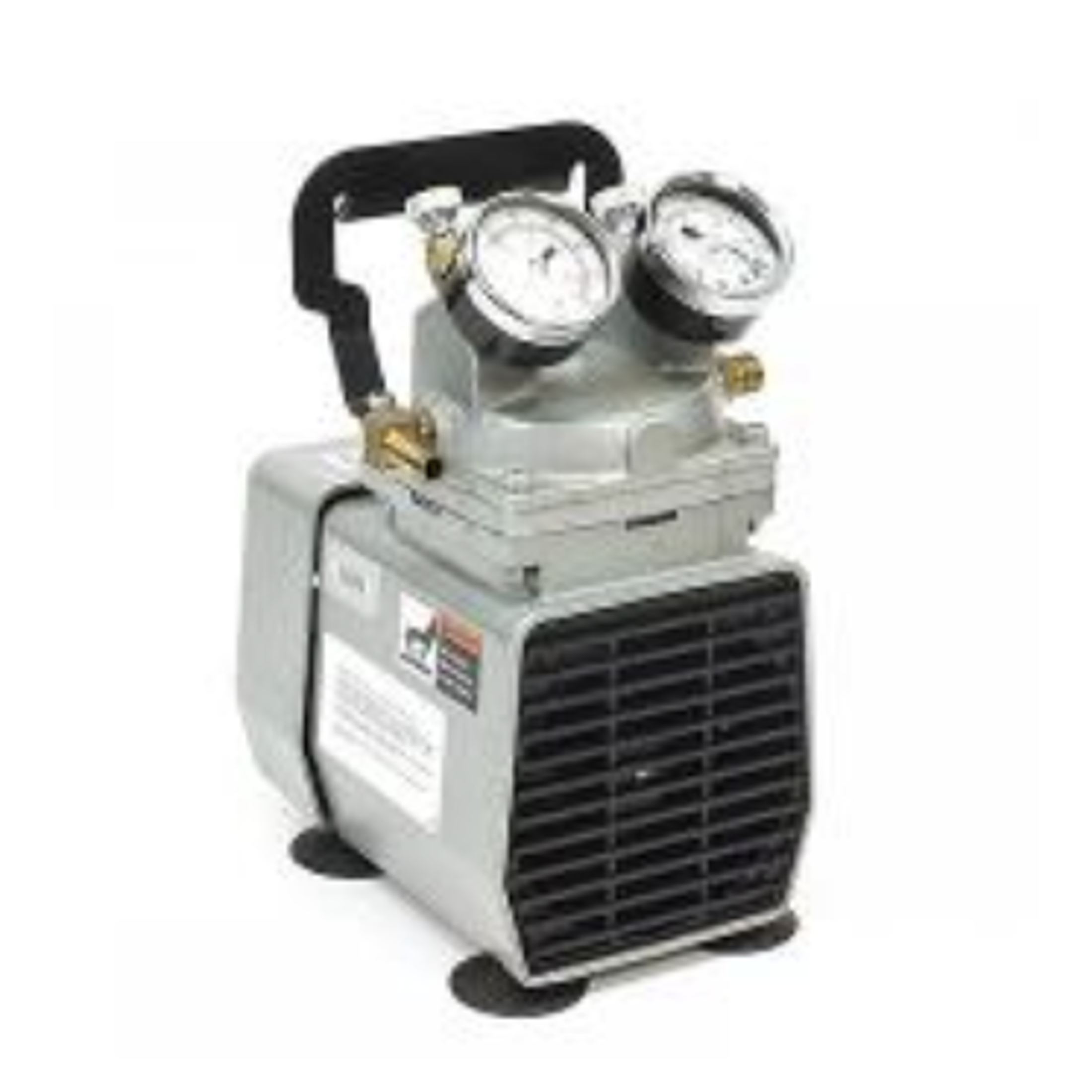

Gast Pump
DOA-P704-AC
- Type: Oil-less — no oil replacement required
- Performance: 32 L/min capacity, Max vacuum 25.5 hg, Max pressure 60 psi
- Power: 115 V / 60 Hz, 1/8 HP | Weight: 8.7 kg
- Application: Filtration pump for membranes or glass filters

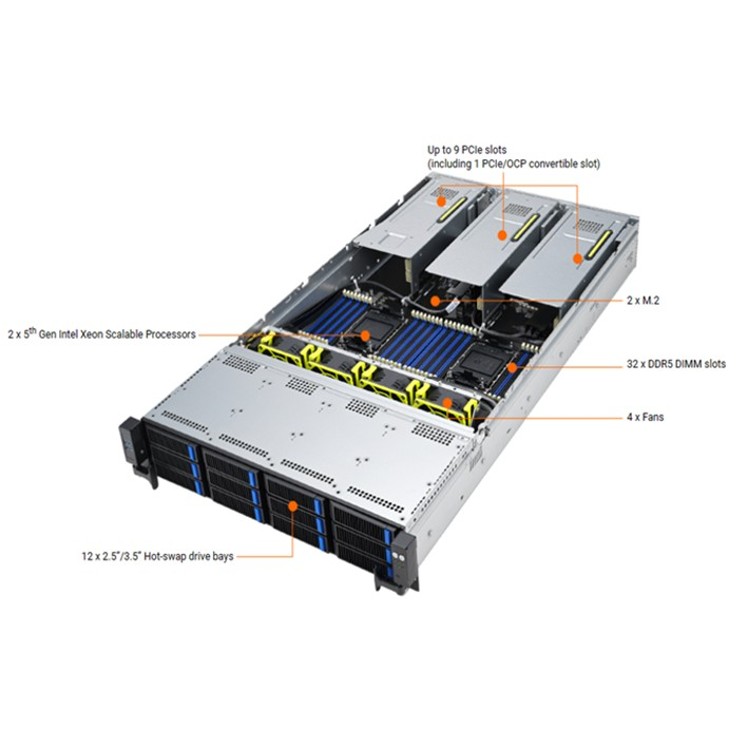

Computing Server
ASUS RS720-E11-RS12U
- CPU: Intel® Xeon® Gold 6526Y × 2 (16 cores, 2.80 GHz, 37.5 MB Cache)
- RAM: 128 GB DDR5 (PC5-38400 ECC/REG 64 GB × 2)
- SSD: 1.92 TB PCIe 4.0 ×4 NVMe (3D4 TLC)
- OS: Linux
Computing Server

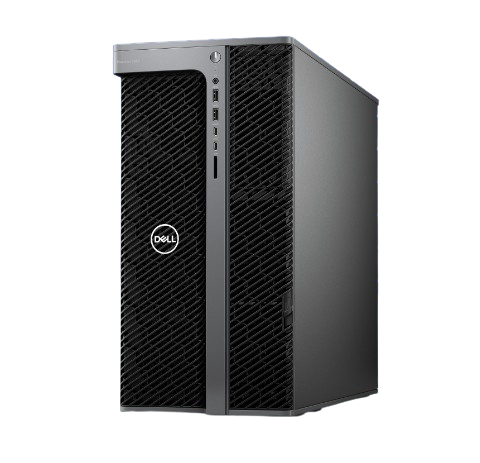

Precision 7960 Tower
- CPU: Intel® Xeon® w5-3525 (16 cores, 32 threads, 3.2–4.8 GHz Turbo, 290 W, 45 MB Cache)
- RAM: 192 GB DDR5
- SSD: 1 TB M.2 PCIe NVMe
- GPU: NVIDIA RTX A5000 (24 GB GDDR6)
- OS: Windows
Computing Server
Additional Server
- CPU: Intel® Xeon® w5-3525 (16 cores, 32 threads, 3.2–4.8 GHz Turbo, 290 W, 45 MB Cache)
- RAM: 192 GB DDR5
- SSD: 1 TB M.2 PCIe NVMe
- GPU: NVIDIA RTX PRO 5000 Blackwell D7 72GB
- OS: Linux (Ubuntu v24.04)

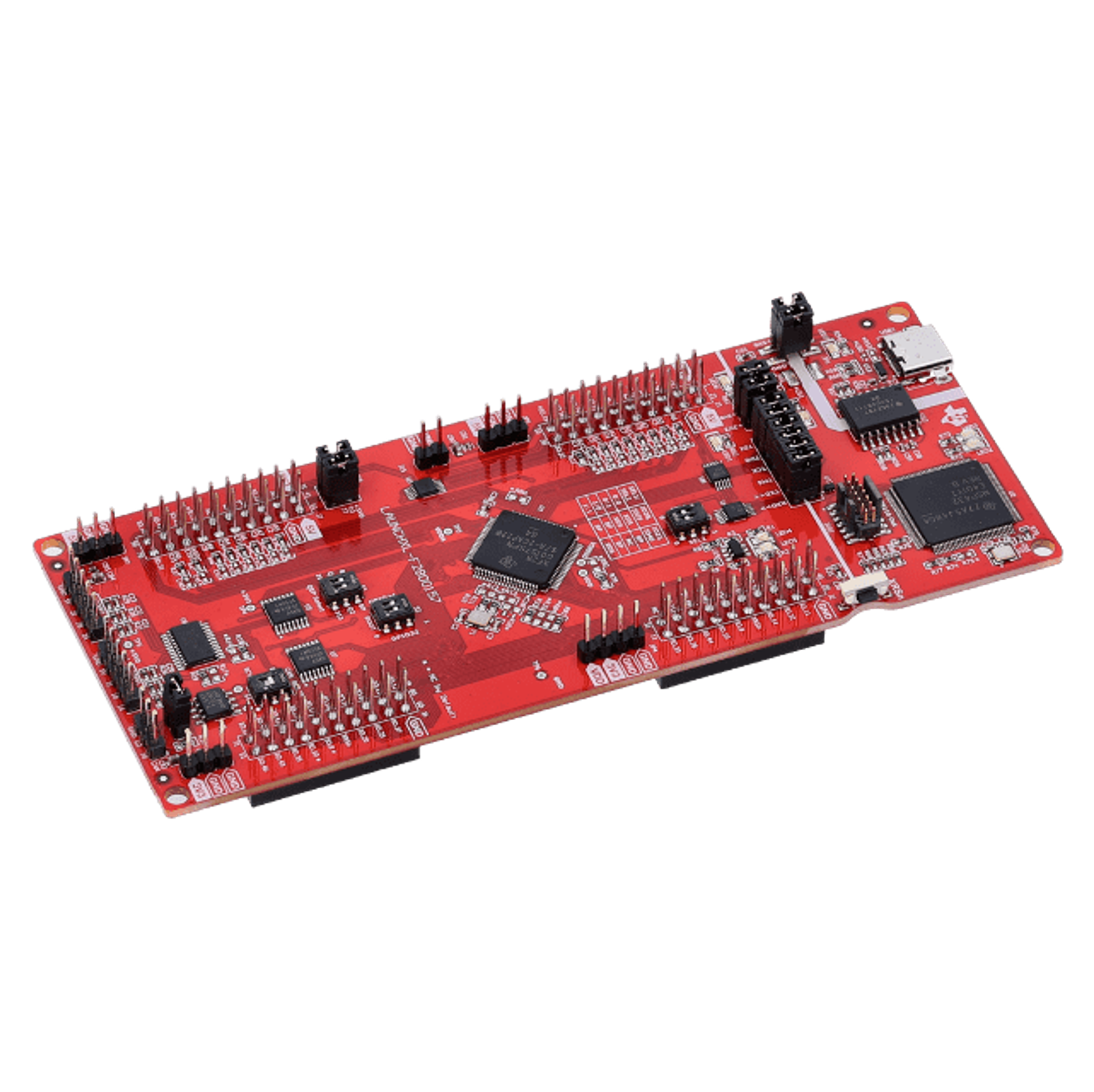

C2000 Launchpad
TMS320F28379D
- Processor: TMS320F28379D — 200 MHz dual C28x CPUs and dual CLAs, 1 MB Flash
- Peripherals: 16-bit/12-bit ADCs, comparators, 12-bit DACs, HRPWMs, eCAPs, eQEPs, CAN
- Debug Interface: USB-connected isolated XDS100v2 JTAG probe
- Connectors: 4 × 20-pin headers; programmable buttons and LEDs
- Expansion: Compatible with two BoosterPack™ plug-in modules

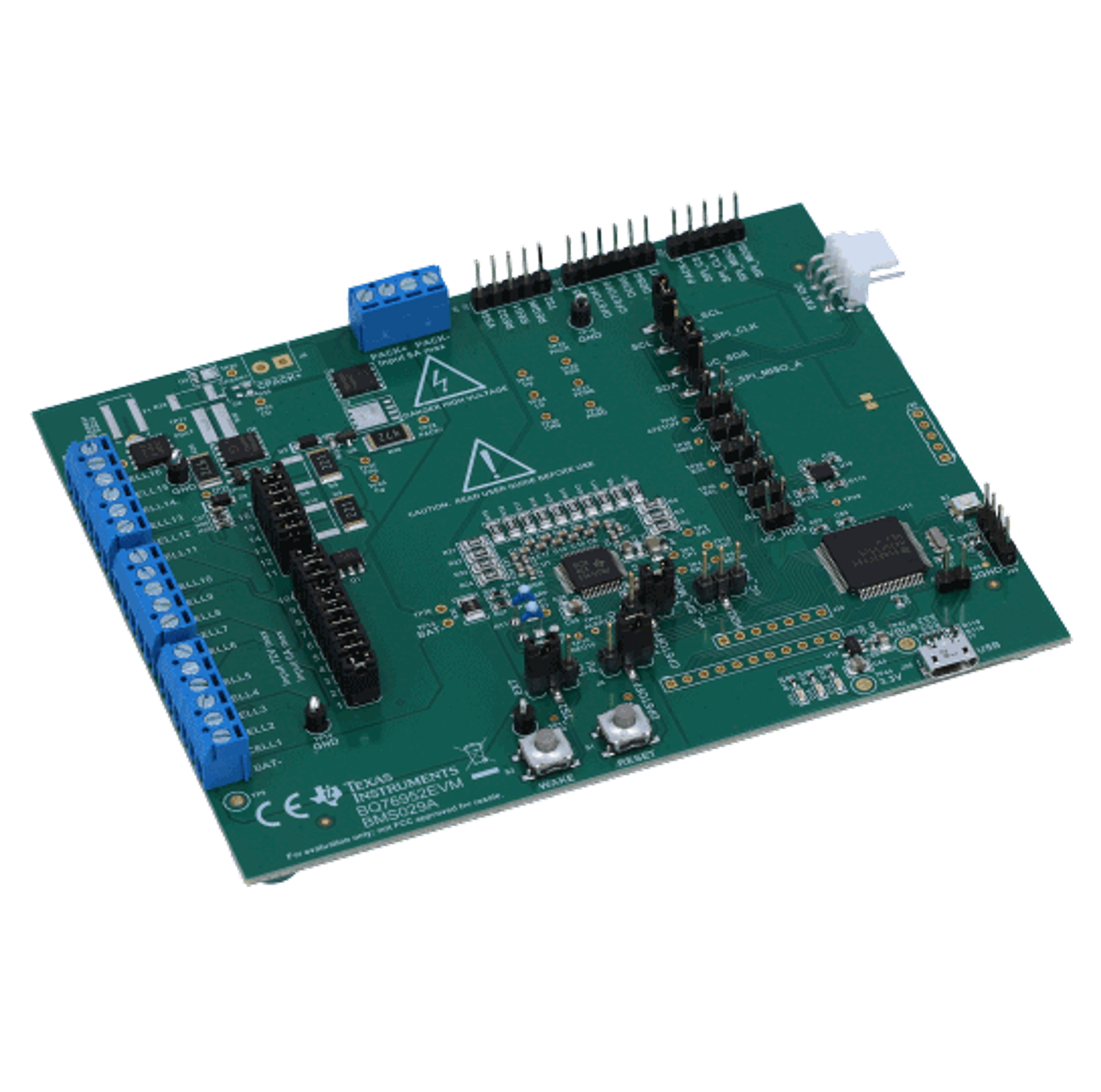

Texas Instruments BQ76952EVM
BQ76952EVM
- Supported Cells: 3 to 16 Li-ion or LiFePO₄ cells
- Included Module: Pre-assembled circuit module for 16-cell configuration
- Communication: USB interface adapter; 4-pin connector available
- Simulation: Built-in resistor-based cell simulator powered by external supply
- Firmware & GUI: Preloaded firmware, GUI, and demonstration files

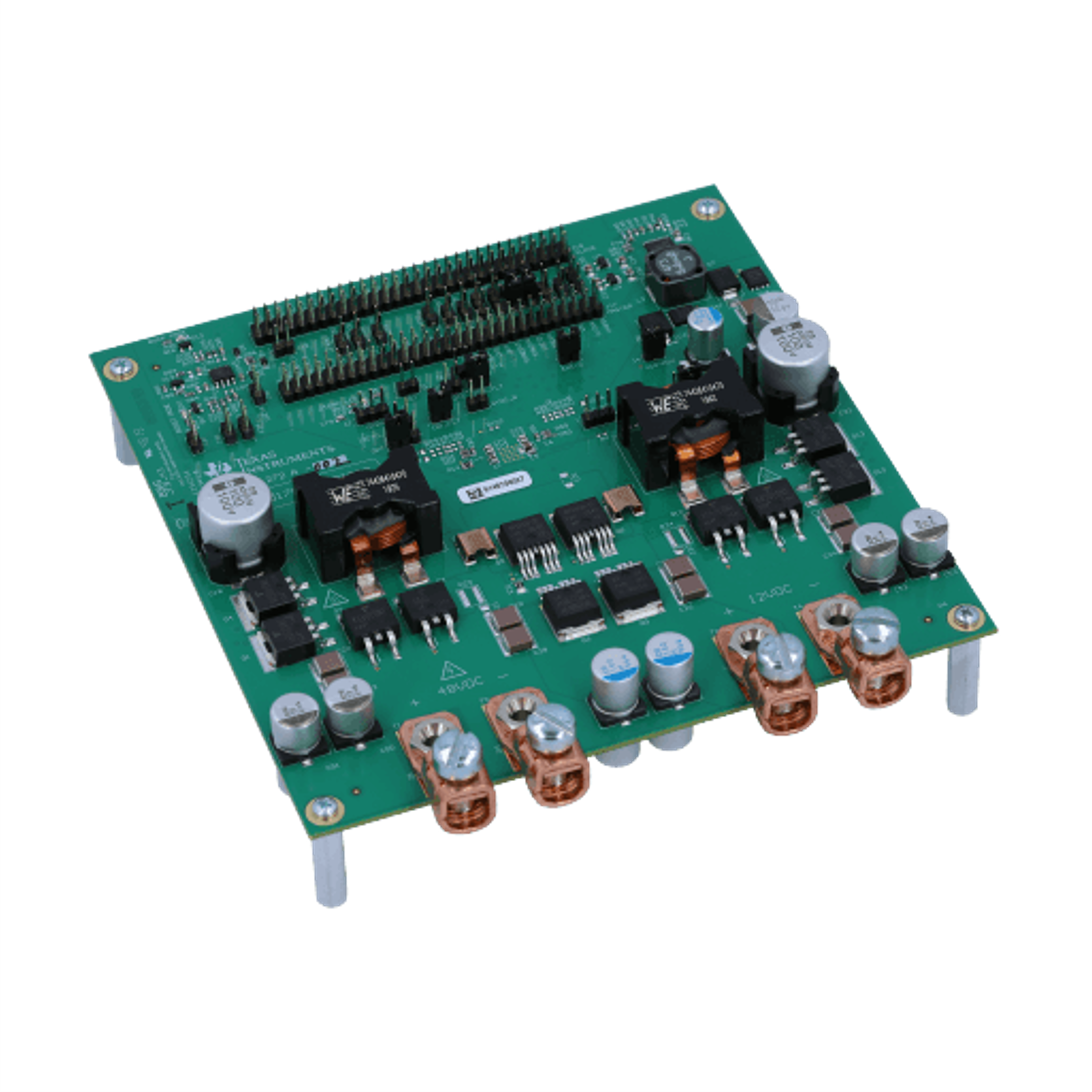

Texas Instruments LM5170EVM-BIDIR
LM5170EVM-BIDIR
- Buck Mode: 48 V port 6–75 V; 12 V port regulated at 14.5 V
- Boost Mode: 12 V port 3–48 V; 48 V port regulated at 50.5 V
- Max DC Current: 60 A input/output on 12 V port
- Control: Built-in analog voltage loop; optional MCU-based digital loop
- Multi-Phase: Supports interleaved 3-/4-/6-/8-phase daisy-chain operation
